Louver
System
大型百葉系統

系統簡介與特性

Introduction and Features
  1. 使用GM ZINC+及GM COMPRO，可提供更經濟的大型百葉解決方案。
  2. 材料輕量化且面材結構強度增強，平整度更佳。
  3. 可搭配各種不同金屬面材及塗裝，達到耐候與耐久性。
  4. 造型客製化，提供多樣選擇。

  1. Cost effectiveness in large louver with GM ZINC+ or GM COMPRO.
  2. Lighter weight, higher rigidity, and flatter surface.
  3. Good weatherability and durability with varies of material and coating.
  4. Tailor-made per customer needs.

適用範圍

Applications
  • 玻璃帷幕、大面積門窗。

  • Aluminum alloy, Steel, TiZinc, Alloy extrusion, etc.

系統材質組合

Combination Availability
  • PVDF、木紋烤漆、鈦鋅半透明著色塗裝。

  • Curtain wall, large window.

綠建築效益

Green Building Benefits
  • 造型百葉可搭配各種牆面構造，包含RC牆、磚牆、帷幕牆等。在外牆安裝造型百葉可有效增加建築牆面的遮陽與隔熱能力，亦有美化建築外觀的功能。大面開窗的建築若要取得綠建築標章，在外牆上加裝造型百葉遮陽是最經濟實惠的辦法。造型百葉的形式可讓建築師發揮無限創意，可輕易達到法規中所規定『綠建築外殼耗能基準值ENVLOAD』的最低要求。

    By using the exterior screen system onto exterior facades (RC, SRC, SC, etc), the louvers / blinds would increase the shade, heat isolation and decorate the walling system. Building s with an approved sun screen system is eligible for “Green Building Seal” easily meet the minimum “ENVLOAD” value of newly published architectural legislation “Standard Energy Consumption for Building Envelope.”

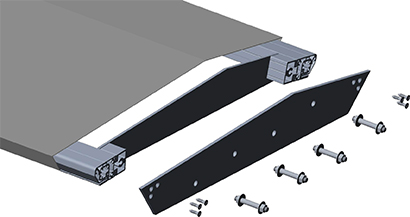

系統分解圖

Parts Exploded View

標準系統圖

Isometric View

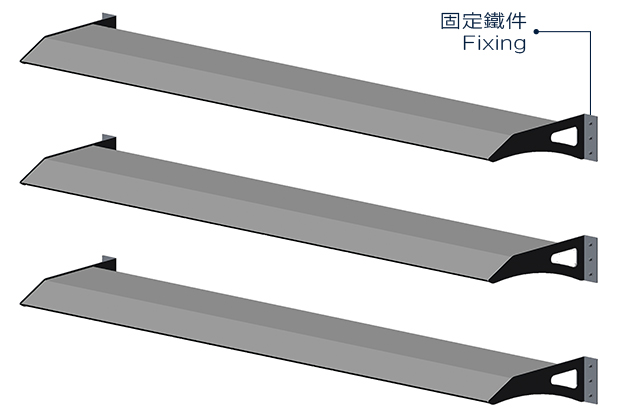

長百葉 Linear Louver
img_products

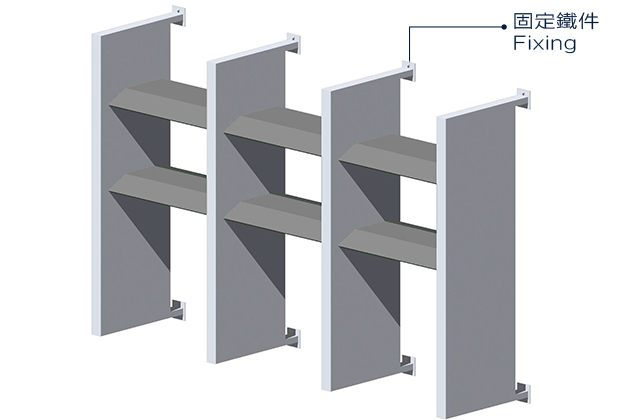

模組式遮陽百葉 Pre-Assembled Louver
img_products

日照陰影模擬

Global Illumination

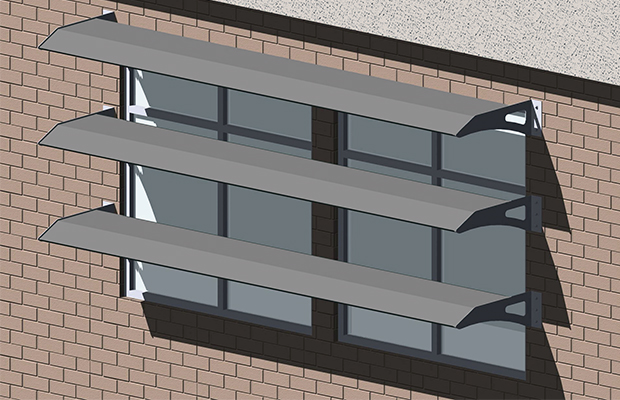

長百葉 Linear Louver
img_products

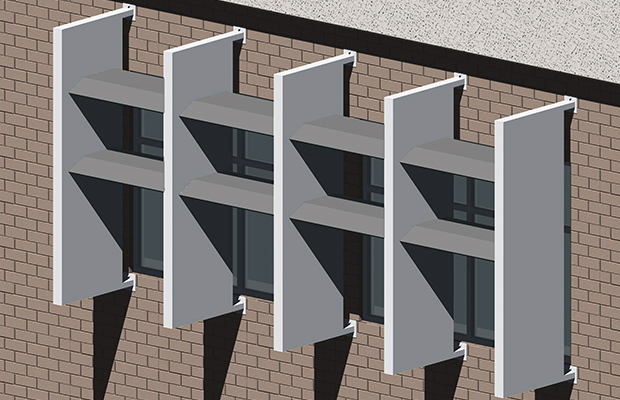

模組式遮陽百葉 Pre-Assembled Louver
img_products

相關案例

Projects
img_products

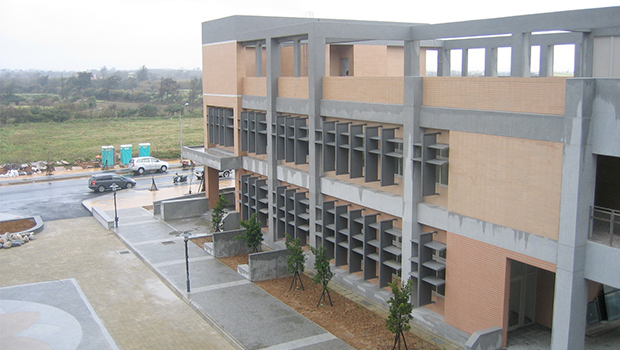

觀音鄉行政園區
Admin. Area, Guanyin Township, Taoyuan County
img_products

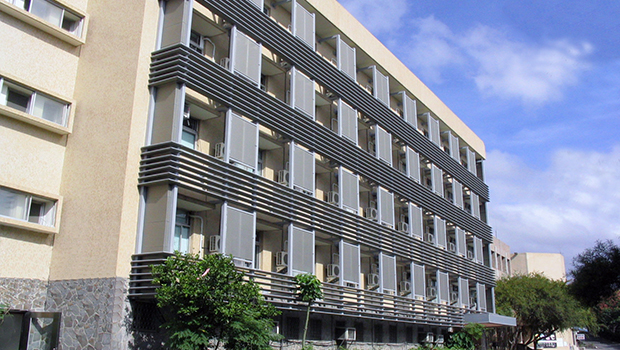

國立陽明大學
National Yang-Ming University
