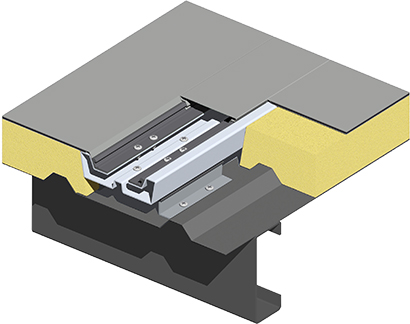

FR30 Flat
Roof System
FR30 平頂式系統

特性與優勢

Features and Benifits
  1. 特殊屋面天溝蓋板設計,屋頂完成面光潔無立縫。
  2. 配合隔熱材使用,具30分鐘防火時效。
  3. 平整度良好。
  4. 雙向天溝設計,確實匯集排水,確保屋面防水。

  1. Exclusive inner trench cover strip keeps clean finish without standing seam.
  2. 30 minutes fireproof rating.
  3. No weakness due to grooving.
  4. Gutter and Inner trench in two axis for collection of rain water.

適用範圍

Applications
  1. 平面與斜面屋面
  2. 折面屋面
  3. 弧形屋面

  1. Flat roof
  2. Folded roof
  3. Curved roof

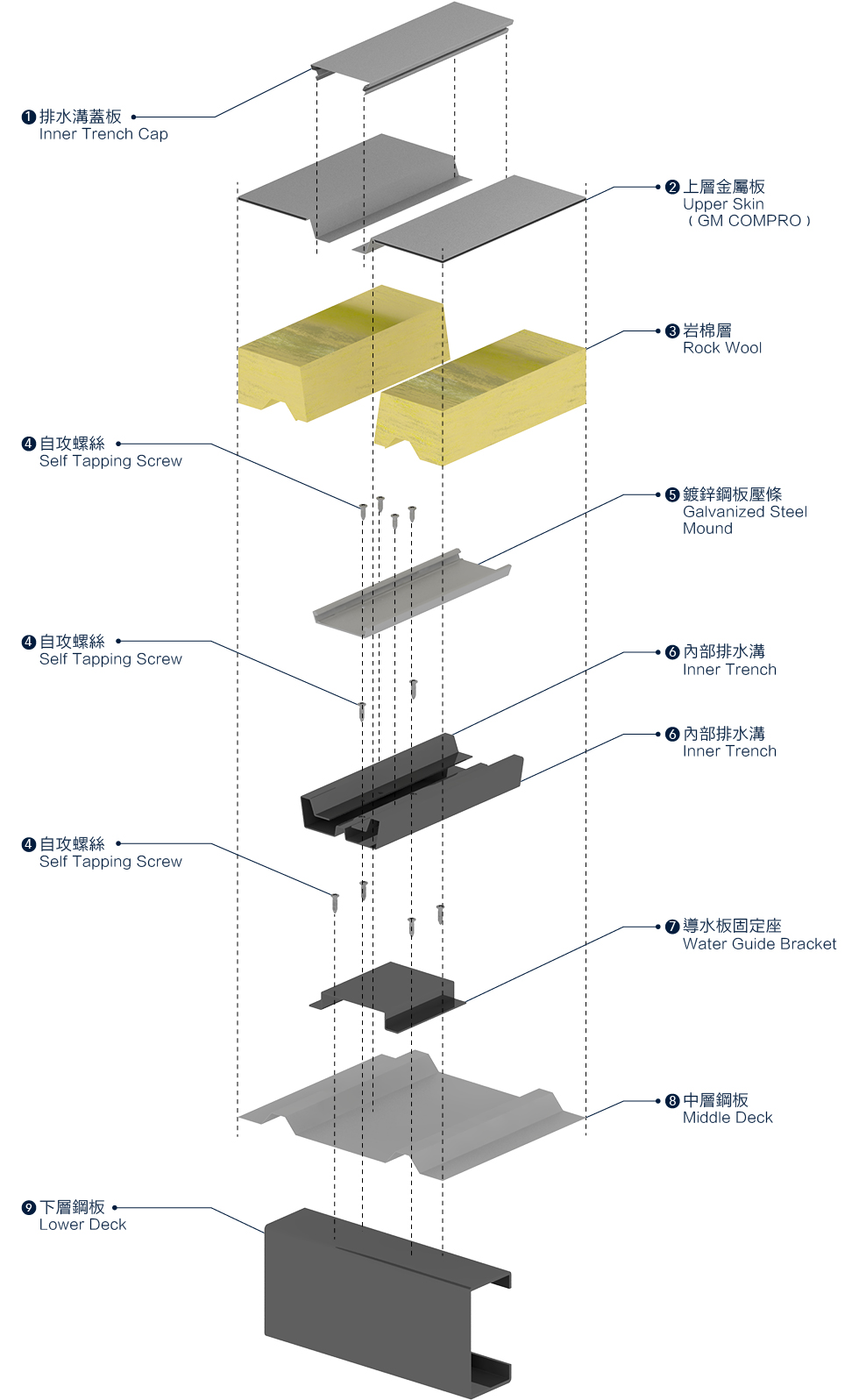

系統分解圖

Parts Exploded View

系統板片搭接與收邊

Panel End Closure and End Laps

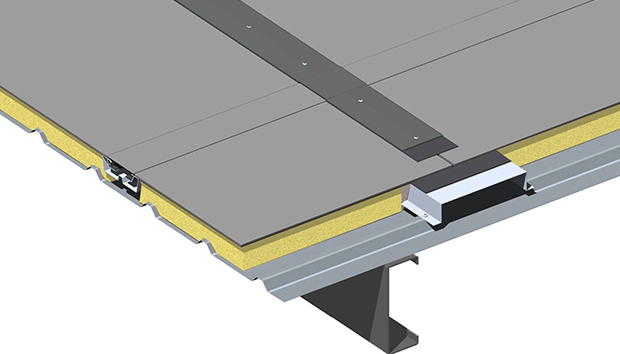

板片搭接圖 Panel Longitudinal Joint
img_products

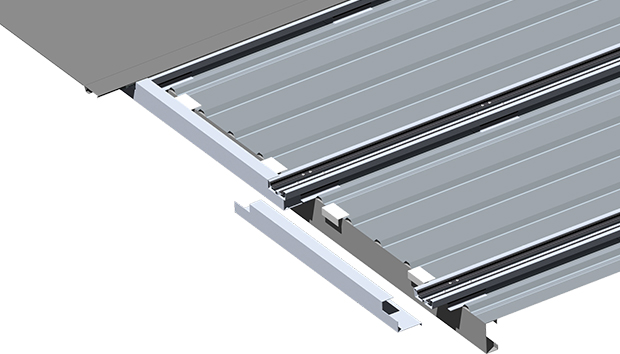

簷口收邊 Gutter Isometric View
img_products

相關案例

Projects

img_products

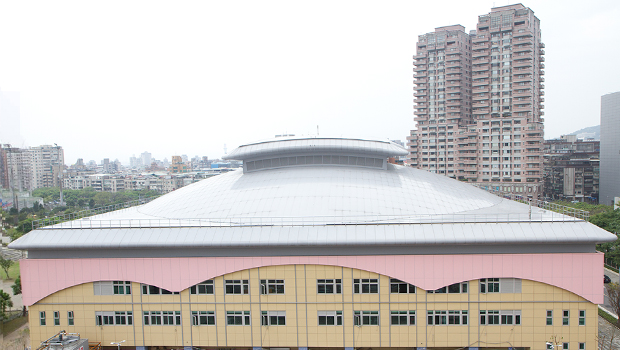

台北市立大學天母校區 | 體育館A棟
Sports Center A, University of Taipei, Tian-Mu Campus
img_products

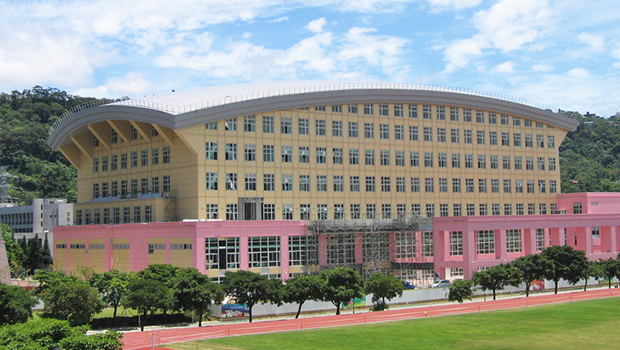

台北市立大學天母校區 | 體育館C棟
Sports Center C, University of Taipei, Tian-Mu Campus
img_products

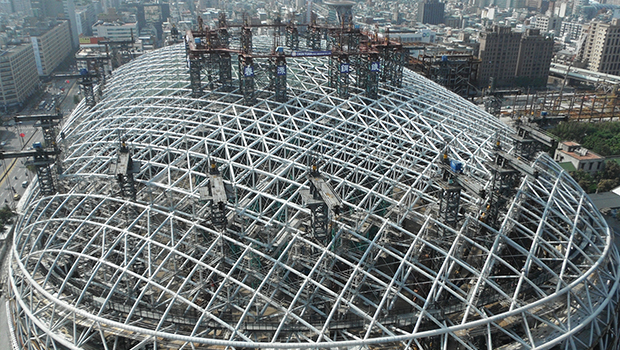

台北大巨蛋
Taipei Dome Complex
